PIR Fresnel Lens Complete Guide

How They Enable Precision Motion Detection in Smart Systems

Imagine walking into a room and the lights react instantly—no lag, no misfires, just clean and accurate motion sensing.
Behind this “effortless intelligence” is a component many people hardly notice but every engineer quietly relies on: the PIR Fresnel lens.

More than 85% of today’s motion-activated devices depend on this compact optical element. Whether you're building smart home lighting, industrial sensors, or security systems, choosing the right PIR Fresnel lens can mean the difference between a product that works—and one that truly stands out.

This guide distills the key principles, design choices, and practical selection criteria that help you build high-performance infrared sensing systems.

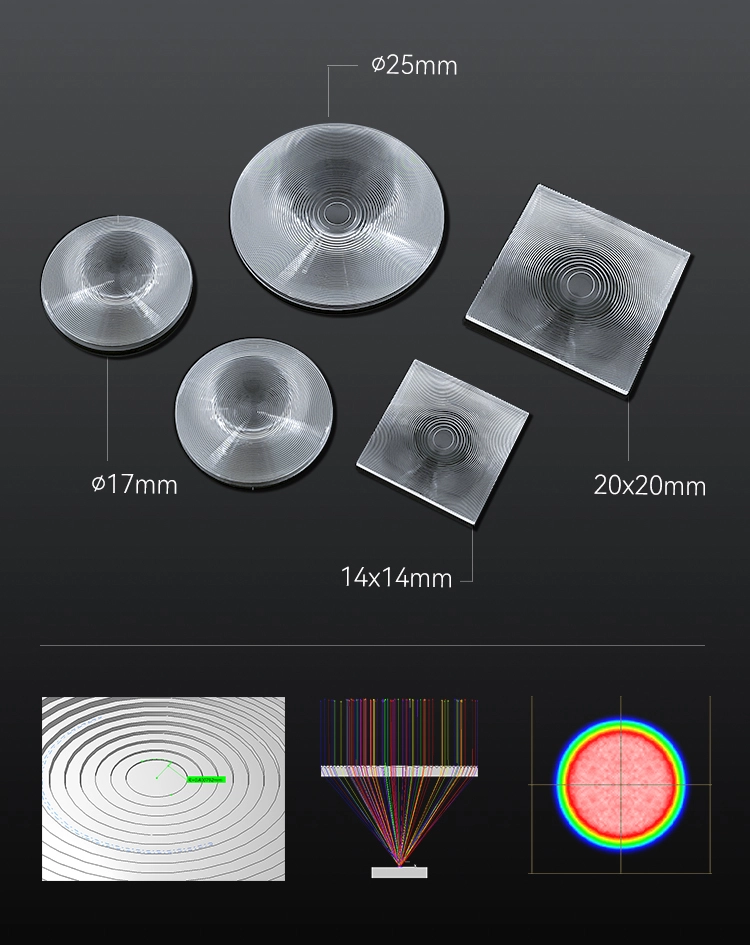

What Is a PIR Fresnel Lens and How Does It Work?

A PIR Fresnel lens concentrates infrared radiation—especially in the 8–14 µm range—onto a passive infrared sensor. Instead of using a thick, curved lens, it compresses optical power into thin, concentric rings.

Think of it as taking a traditional magnifying glass and flattening it into a lightweight, efficient version while keeping its focusing ability.
This is why it fits so easily into today’s smart devices.

The Science Behind Passive Infrared Sensing

Human bodies naturally radiate heat—peaking around 9.4 µm—like a gentle glow that we cannot see but sensors can “feel.”
A PIR sensor measures changes in this glow through pyroelectric materials.

However, without a lens, a PIR sensor is like an ear trying to hear whispers in a noisy room—it detects something, but not clearly, and not from far away.

The Fresnel lens acts like a finely-tuned “IR funnel,” collecting infrared energy from a wide area and directing it precisely onto the tiny sensing element.
Its multi-segment structure splits detection into zones—similar to dividing a room into invisible IR tiles—allowing the sensor to detect movement patterns, not just heat.

Why Fresnel Designs Outperform Traditional Lenses

A traditional convex lens with similar power would be thick, heavy, and costly. Fresnel technology solves this by slicing the curved surface into thin rings that bend light in the same direction.

For PIR applications, Fresnel lenses offer three standout advantages:

• Material efficiency: Up to 90% less material than a convex lens

• Ultra-light construction: Perfect for compact or ceiling-mounted devices

• Cost-effective manufacturing: Ideal for high-volume injection molding

In other words, you get the performance of a full lens at a fraction of the size and cost.

Types of PIR Fresnel Lenses: Matching Designs to Real-World Needs

Different detection environments call for different optical patterns. Here’s how major lens types compare.

Standard PIR Fresnel Lenses – The Everyday Specialist

These offer 90°–120° detection angles and ranges of 5–12 m. Made from PMMA, they deliver excellent IR transmission with reliable indoor performance.

Best for: smart lighting, HVAC control, commercial occupancy sensing.

Tip: More detection zones improve detail—but may make the system more sensitive to small pets or slight air movements.

Curtain-Type Lenses – Directional Precision

Instead of a cone-shaped coverage area, curtain lenses create a thin vertical or horizontal “sheet” of detection.

Picture a light curtain at a supermarket entrance—only here, it’s infrared.

Ideal for doorways, corridors, and perimeter security where side movement must be filtered out.

Collimated & Threaded Lenses – Long-Range & High-Accuracy

Collimated lenses produce focused, narrow beams for long distances (15–20 m).
Threaded lenses (e.g., M12x0.5) ensure precise alignment and quick OEM installation.

These are especially effective in large industrial spaces or high ceilings (8–15 m).

How to Select the Right PIR Fresnel Lens: 7 Key Criteria

Choosing a lens is about balancing optical design with environmental and mechanical requirements.

1. Detection Range & Angle

Define the area you want to cover before selecting a lens.

Example:

• 3 m installation height

• 100° detection angle
  → Coverage ≈ 7.1 m diameter

2. Material Selection

Each material behaves differently under infrared:

• PMMA: highest IR transmission; perfect for indoor devices

• PE: excellent UV resistance; ideal for outdoor fixtures

• Glass: premium accuracy; for niche high-end optical systems

3. Environmental Durability

Temperature swings, humidity, and IP ratings determine long-term stability.

• Outdoor devices often need IP54+

• Washdown environments require IP65

4. Focal Length Matching

A mismatch of even 0.5 mm can dramatically reduce sensitivity—imagine wearing glasses with the wrong prescription.
Always confirm lens–sensor matching early in development.

5. Off-the-Shelf vs Custom Designs

• Standard lenses: Fast prototyping, low development cost

• Custom lenses: Best for >50,000 units/year or unique performance demands

6. Detection Zone Configuration

More zones = higher motion resolution
Fewer zones = better noise immunity

Choose based on your application’s sensitivity requirements.

7. Mounting & Integration

Mechanical fit impacts final sensing accuracy:

• Snap-fit options for easy assembly

• Threaded options for precision alignment

• Custom brackets for retrofits

Common PIR Fresnel Lens Problems and Solutions

No system is perfect, but most issues are predictable and solvable.

1. False Triggering

Causes: sunlight, airflow, pets
Solutions:

• Adjust lens orientation

• Use dual-element sensors

• Choose pet-immune zone patterns

2. Coverage Blind Spots

Check: perform a walk-test
Fix:

• Adjust mounting angle (±5–10°)

• Use multi-facet lens arrays in critical environments

3. Lens Degradation

UV exposure can gradually reduce IR performance.

Prevention:

• Use UV-stable materials outdoors

• Apply protective coatings

• Replace lenses periodically in harsh environments

The Future of PIR Fresnel Lens Technology

Innovation continues to accelerate in optics and sensing.

Key trends include:

• New materials: higher IR transmission, better durability

• AI-assisted detection: smarter motion recognition with up to 80% fewer false alarms

• Miniaturization: smaller lenses with no performance compromise

• Multi-spectral sensing: combining PIR with radar, ultrasonic, or visible-light sensors

Modular lens–sensor packages are also emerging, helping manufacturers shorten development cycles and reduce integration complexity.

Conclusion: Choosing the Right PIR Fresnel Lens

To build a high-performance motion detection system:

1. Start with your detection geometry

2. Match materials to the environment

3. Confirm focal length compatibility early

4. Consider custom designs for high-volume production

5. Test real-world performance before finalizing

The right lens doesn't just improve sensing—it elevates your entire product.

Need Help Optimizing Your Design?

Whether you're starting with standard lenses or planning custom production, partnering with a supplier who offers optical simulation, tooling, and engineering support can significantly improve performance and reduce development time.

If you need assistance selecting or customizing PIR Fresnel lenses, our team can help you design a solution optimized for your specific application.

Frequently Asked Questions

Q1: What is the typical detection range of a PIR Fresnel lens?

A: Standard PIR Fresnel lenses offer 5-12 meter detection ranges with 90-120° angles. Collimated designs can reach 15-20 meters.

Q2: What materials are PIR Fresnel lenses made from?

A: Common materials include PMMA (indoor), PE (outdoor/UV-resistant), and glass (high-precision applications).

Q3: How do I fix false triggering in my PIR sensor?

A: Adjust lens orientation away from sunlight, use dual-element sensors, or select pet-immune detection patterns.
